IDS industrial camera or machine vision cameras was the most easy integration cameras in the market. Therefore is so easy for IDS cameras become most compatible with market most popular machine vision software such as OpenCV, Labview, Cognex and Halcon vision software. IDS also provide wide range of industrial C-mount cameras such GigE, 5 GigE, 10 GigE, USB 2.0, USB 3.0, and USB 3.1 interfacing models.
For find out more IDS Cameras please follow the link.
Meanwhile, if you need technical support please email us sales@inosaki.my
Camera Features

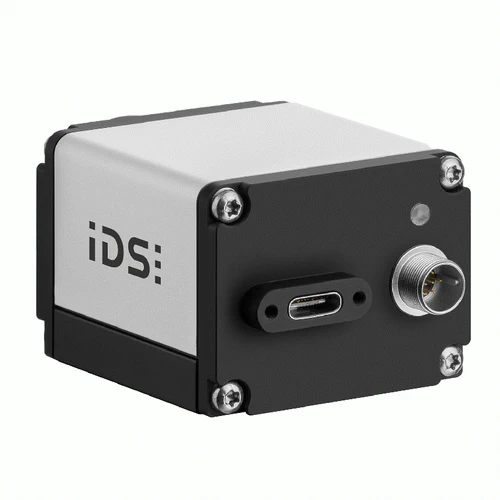

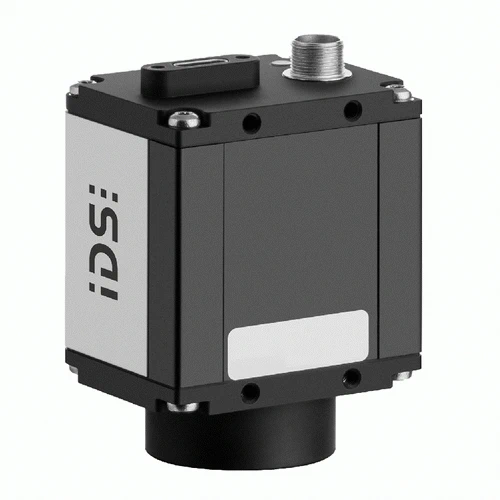

What a camera! The USB3 Vision industrial camera U3-3000SE with the large-format 1.1″ CMOS sensor IMX253 delivers razor sharp, clear and noise-free 32.0 fps at full resolution (12.29 MPix, 4096 x 3000 px) via its USB interface. It meets the highest requirements for resolution, speed and image quality and impresses with its technical values such as sensitivity (quantum efficiency QE @ 533 nm = 61 %). The U3-3000SE is primarily used in classic machine vision applications where fast objects have to be captured or in microscopy where particularly high sensitivity is required. Its extremely low dark noise makes the camera also suitable for applications in biosciences.
IDS-typical special features – such as long-term exposure up to 44.0 s or the linescan mode for using the industrial camera as a line scan camera – also extend the application possibilities.
The U3-3000SE is available in both monochrome and colour variants.
This camera model is supported by IDS Vision firmware 2.0 and higher.
Camera Data
Item number |
|
---|---|
Name | U3-3000SE |
Camera family | SE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 32.0 fps |
Resolution (h x v) | 4096 x 3000 |
Optical Area | 14.131 mm x 10.350 mm |
Shutter | Global Shutter |
Optical class | 1.1″ |
Resolution | 12.29 MPix |
Pixel size | 3.45 µm |
IP code | IP30 |
Product Life Cycle | Series |
Data sheet |
Weight | N/A |
---|---|
Dimensions | N/A |
