U3-3272SE IDS Camera

$ 971.29

USB 3.0, CMOS, 58.0 fps, 2048 x 1536, 3.15 MPix, 1/1.8″, Sony, Global Shutter

Product:
U3-3272SE-C (colour)
U3-3272SE-M (monochrome)

(Illustrations may differ from the original)

SKU N/A Category

IDS industrial camera or machine vision cameras was the most easy integration cameras in the market. Therefore is so easy for IDS cameras become most compatible with market most popular machine vision software such as OpenCV, Labview, Cognex and Halcon vision software. IDS also provide wide range of industrial C-mount cameras such GigE, 5 GigE, 10 GigE, USB 2.0, USB 3.0, and USB 3.1 interfacing models.

Meanwhile, if you need technical support please email us sales@axmatic.com

Camera Features

The Sony Pregius IMX265 is together with its big brother IMX252 probably the best CMOS image sensor in the 3 MP class. The USB3 Vision industrial camera U3-3272SE with the 1/1.8″ global shutter sensor transmits its resolution of 3.15 MPix (2048 x 1536 px) with a frame rate of 58.0 fps via the USB interface. In terms of dynamic range, sensitivity and linearity, the camera is second to none and inspires industrial customers in mechanical engineering, metrology and medical technology.

Special functions include 90.0 s long exposure and the linescan mode for using the area scan camera as a cost-effective line scan camera alternative.

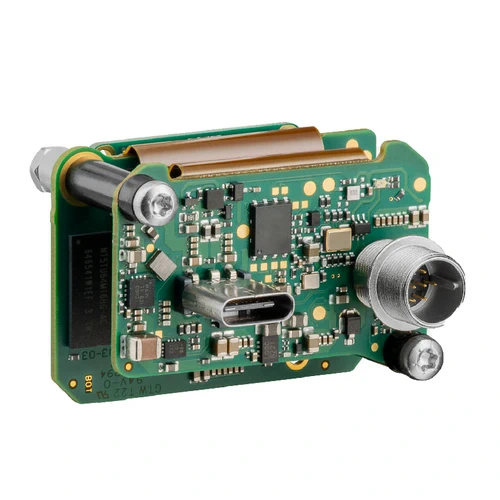

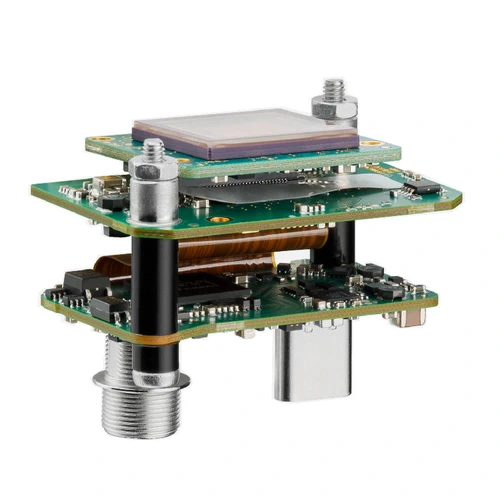

The U3-3272SE board level camera without lens holder is available in a colour or monochrome version.

This camera model is supported by IDS Vision firmware 2.0 and higher.

IDS Software Suite is an identical software package for all IDS cameras. It supports all sensor features. For Windows and Linux (32 and 64 bit)

Camera Data

Item number
  • U3-3272SE-M: AB02867
  • U3-3272SE-C: AB02866
Name U3-3272SE
Camera family SE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 58.0 fps
Resolution (h x v) 2048 x 1536
Optical Area 7.066 mm x 5.300 mm
Shutter Global Shutter
Optical class 1/1.8″
Resolution 3.15 MPix
Pixel size 3.45 µm
IP code No
Product Life Cycle Series
Data sheet

Additional information

Weight N/A
Dimensions N/A
