U3-3564XLE Rev.1.1 IDS Camera

IDS industrial camera or machine vision cameras was the most easy integration cameras in the market. Therefore is so easy for IDS cameras become most compatible with market most popular machine vision software such as OpenCV, Labview, Cognex and Halcon vision software. IDS also provide wide range of industrial C-mount cameras such GigE 5, GigE 10, GigE, USB 2.0, USB 3.0, and USB 3.1 interfacing models.

For find out more IDS Cameras please follow the link.

Meanwhile, if you need technical support please email us sales@inosaki.my

Camera Features

Thanks to the versatile onsemi AR0234 1/2.6″ CMOS sensor (1920 x 1200, pixel size 3 µm, 73.0 fps), the U3-3564XLE Rev.1.1 industrial camera with SuperSpeed USB 5 Gbps can be used in a wide range of applications. The exceptional shutter efficiency of the 2.30 MPix sensor enables impressively clear and sharp images of moving objects in different lighting conditions. The combination of high-quality global shutter sensor technology and cost-effective uEye XLE camera platform with support for the USB3 vision standard is an optimal, high-performance and long-term alternative for the popular uEye LE camera series with USB 2 interface. Thanks to its compact dimensions and USB Type-C connector, it can be easily integrated into any vision system.

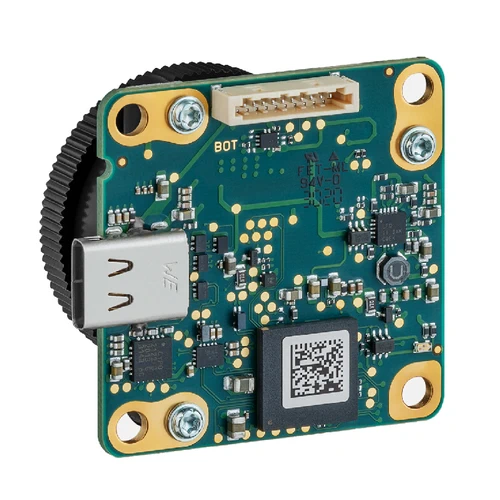

The compact USB3 camera is available either with a plastic housing with C/CS-mount or S-mount or as a board-level version with or without C/CS-mount or S-mount.

Like all other camera models of the uEye XLE family, the U3-3564XLE Rev.1.1 is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.

Camera Data
