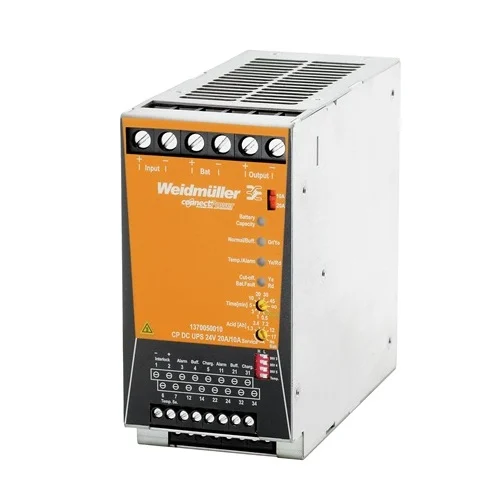

Weidmuller CP DC UPS 24V 20A_10A Control Unit

Technical Overview

High-efficiency DC UPS control unit for 24V systems, offering 20A/10A selectable output, DIN rail mount, and battery backup with integrated charger.

Key Features

High-efficiency buffer module
Stable 24 V DC power output
Selectable output currents up to 20A
Supports battery backup operation with integrated charger
Advanced protection features including surge and output overload protection
DIN rail mounting for easy integration
Three relay outputs, three active transistor outputs, and control input for remote control via SPS/DCS
Numerous modes of operation and an easy-to-use status display for rapid fault diagnosis
IP20 rated for protection against solid objects
Corrosion-resistant metal housing

Technical Specification Matrix

Parameter	Value
Input Voltage DC	20 VDC to 30 VDC
Output Voltage	24 VDC
Output Current	20A / 10A selectable
Output Power	480 W
Mounting Style	DIN Rail
Terminal Type	Screw
IP Rating	IP20
Operating Temperature	-25 °C to +70 °C
Storage Temperature	-40 °C to +85 °C
Approvals	CE, cULus, DNV, TUV, RoHS
Physical Weight (kg)	1.14
Dimensions L x W x H (cm)	15 x 6.6 x 13

Industrial Applications

1. Industrial Control Panel Power Redundancy

This control unit ensures uninterrupted 24V DC power for critical industrial control systems within factory automation, safeguarding against shutdowns caused by power fluctuations or momentary outages. Its DIN rail mount facilitates seamless integration into existing control cabinets.

Problem Solved

Prevents data loss and operational downtime in industrial processes due to unstable or interrupted primary power supply to critical control components.

24V DCUPSDIN Rail MountPower RedundancyIndustrial Automation

2. Remote Monitoring Station Power Stability

Ideal for maintaining continuous power to remote telemetry units (RTUs) or environmental data logging stations situated in challenging environments. The robust operating temperature range of -25°C to +70°C and IP20 rating ensure reliable performance, while the integrated battery charger provides uninterrupted operation during intermittent power availability.

Problem Solved

Guarantees continuous data acquisition and system functionality in remote or outdoor industrial monitoring applications where consistent grid power cannot be assured, even in varying temperature conditions.

24V DCBattery BackupIP20Wide Operating TemperatureRemote Monitoring

3. Emergency Lighting Systems in Industrial Facilities

Serves as a reliable backup power source for 24V DC emergency lighting circuits within industrial buildings. The instant switch to battery operation upon detecting a mains failure ensures immediate illumination, crucial for safety compliance and personnel evacuation. The integrated charging function keeps the connected battery always ready.

Problem Solved

Ensures immediate and reliable emergency lighting activation in industrial settings during power failures, enhancing safety and meeting regulatory requirements.

24V DCEmergency PowerBattery ChargingSafety ComplianceIndustrial Lighting
