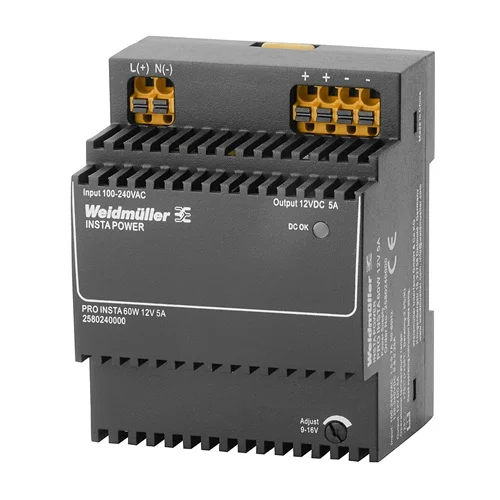

Weidmuller PRO INSTA 60W 12V 5A DIN Rail Power Supply

Technical Overview

Compact 60W DIN rail switching power supply, 12V DC output at 5A, with wide 85-264V AC / 95-370V DC input range and -25 to +70°C operating temperature.

Key Features

Single-phase switching power supply.
Wide AC input voltage range: 85-264 V AC.
Wide DC input voltage range: 95-370 V DC.
Adjustable output voltage (9-16 V DC).
Continuous output current of 5 A @ 55 °C.
High efficiency of 86%.
IP20 protection rating.
Operating temperature range from -25°C to +70°C.
PUSH IN connection system.
DIN rail mounting (TS 35).
International approvals including cCSAus and TUV.

Technical Specification Matrix

Parameter	Value
Input Voltage AC	85...264 V AC
Input Voltage DC	95...370 V DC
Frequency Range AC	45…65 Hz
Rated Output Voltage	12 V DC ± 1 % (adjustable 9-16V DC)
Output Current	5 A (continuous @ 55°C)
Output Power	60 W
Efficiency	86%
Operating Temperature	-25 °C to +70 °C (with derating)
Storage Temperature	-40 °C to +85 °C
Protection Class	II
IP Rating	IP20
Insulation Voltage (Input / Output)	4 kV
Insulation Voltage (Input / Earth)	3.5 kV
Insulation Voltage (Output / Earth)	0.5 kV
Mounting	DIN Rail (TS 35)
Connection System	PUSH IN with actuator
Physical Weight (kg)	0.26
Dimensions L x W x H (cm)	6 x 7.2 x 9

Industrial Applications

1. Industrial Control Panel Power

Powering various 12V DC components within industrial control cabinets, such as PLCs, HMI panels, sensors, and relays, which require a stable and regulated power source in a compact, DIN rail-mounted form factor.

Problem Solved

Provides reliable 12V DC power from a wide range of AC or DC mains inputs, ensuring consistent operation of control systems even with fluctuating industrial power lines. Its compact size (7.2 cm width) and DIN rail mount simplify installation in space-constrained cabinets.

Industrial automationPLC powerHMI supplySensor powerDIN rail12V DCWide input voltageCompact design

2. Building Automation and Security Systems

Supplying power to low-voltage building automation devices like access control systems, CCTV cameras (12V models), lighting controls, and fire alarm components that operate on 12V DC, often requiring a robust power supply suitable for installation in electrical panels.

Problem Solved

Offers a stable and protected 12V DC output for sensitive building security and automation equipment. The wide operating temperature range (-25°C to +70°C) allows for deployment in various indoor environments, and the PUSH IN connections ensure quick and secure wiring.

Building management system (BMS)Access controlCCTVFire alarm12V DCSecure connectionsWide temperature range

3. Small Machine and Equipment Power Supply

Integrated into smaller industrial machines or specialized equipment (e.g., packaging machines, material handling units, testing jigs) to provide 12V DC power for embedded controllers, actuators, indicating lights, or small motors.

Problem Solved

Delivers a consistent 60W, 12V DC output for compact machinery, eliminating the need for bulky external power adapters. Its robust design and wide input range make it suitable for integration into equipment that may be deployed globally with varying power standards.

Embedded systemsMachine control12V DC motorIndustrial equipmentGlobal compatibility60W
