| Main information | ||

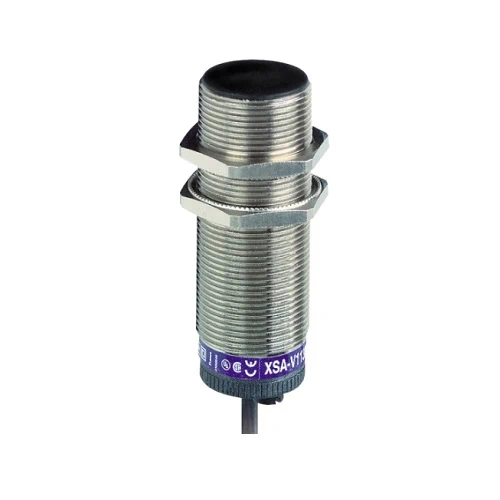

| Part Number | XSAV11801 | XSAV12373 |
| Product Series | Telemecanique Inductive proximity sensors XS | Telemecanique Inductive proximity sensors XS |
| Serial Number | Application Type | Application Type |
| product type | Sensor | Sensor |
| sensor type | Inductive Proximity Sensors | Inductive Proximity Sensors |
| Applications | Rotation detection | Rotation detection |
| sensor name | XSA | XSA |
| Sensor shape | M30 Cylindrical | M30 Cylindrical |
| size | 81 mm | 81 mm |
| ontology type | Fixed | Fixed |
| Detector dark installation acceptance | Embedded | Embedded |
| Material | Metal | Metal |
| Cabinet material | Nickel-plated brass | Nickel-plated brass |
| output signal type | Discrete | Discrete |
| Wiring technology | 2-wire | 3-wire |
| Rated sensing distance | 10 mm | 10 mm |
| Solid state output function | 1 NC | 1 NC |
| output type | AC/DC | DC |
| Solid state output type | PNP | |
| Electrical connections | Cable | Cable |
| cable length | 2 meters | 2 meters |
| Rated supply voltage [Us] | 24…210 V DC | 12…48 V DC and reverse phase protection |
| 24…240 V AC 50/60 Hz | ||
| Switching capacity in mA | 5…200 mA DC | <= 200 mA and overload and short circuit protected |
| 5…350 mA AC | ||
| IP protection class | IP67 complies with screwed | IP67 complies with screwed |
| Additional information | ||
| thread type | M30 x 1.5 | M30 x 1.5 |
| detection surface | Front | Front |
| Front panel material | PPS | PPS |
| Sensing range | > 8…15 mm | > 8…15mm |
| Adjustable frequency range | 6…150 times/min | 120…3000 times/min |
| range of motion | 0…8 mm | 0…8 mm |
| travel difference | 3…15% of Fr | 3…15% of Fr |
| Repeatability | 3% of Sr | 3% of Sr |
| Cable composition | 2 x 0.34 mm² | 3 x 0.34 mm² |
| wire insulation | Pvc | Pvc |
| LED status | Output status: LED (red) | Output status: LED (red) |
| Power supply voltage range | 20…264 V AC/DC | 10…58V DC |
| Maximum residual current | 1.5 mA open state | <= 800Hz |
| On-off level | <= 100Hz | <1.8 V (closed) |
| Maximum voltage drop | <5.7 V (closed) | 0…15 mA no load |
| Rising delay at power-up | 9 s standard | 9 s standard |
| logo | CE | CE |
| Thread length | 67 mm | 67 mm |
| length | 81 mm | 81 mm |
| product weight | 0.3 kg | 0.3 kg |
| Environment | ||
| certified product | UL | CCC |
| CSA | CSA | |
| CCC | UL | |
| operating temperature | -25…70°C | -25…70°C |
| storage environment temperature | -40…85°C | -40…85°C |
| Packaging unit | ||
| Unit Type of Package 1 | PCE | PCE |
| Number of Units in Package 1 | 1 | 1 |
| Package 1 Height | 4.100 cm | 4.100 cm |
| Package 1 Width | 9.500 cm | 9.500 cm |
| Package 1 Length | 13.200 cm | 13.200 cm |
| Package 1 Weight | 226.000g | 232.000g |
| Unit Type of Package 2 | S02 | S02 |
| Number of Units in Package 2 | 22 | 22 |
| Package 2 Height | 15.000 cm | 15.000 cm |
| Package 2 Width | 30.000 cm | 30.000 cm |
| Package 2 Length | 40.000 cm | 40.000 cm |
| Package 2 Weight | 5.230 kg | 5.387 kg |
| Contract warranty | ||
| Warranty | 18 months | 18 months |
