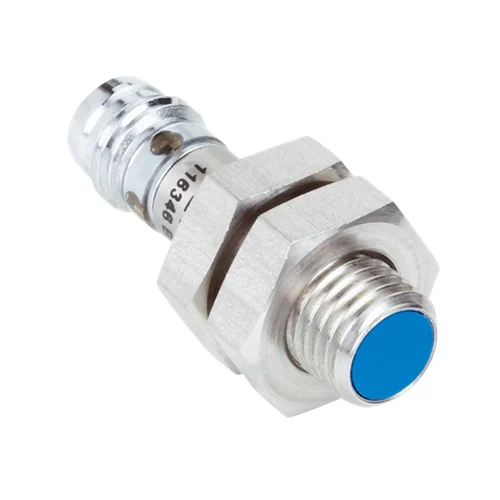

SICK IM08-1B5PS-ZC1 Inductive Proximity Sensor — Compact and Precise Detection
The SICK IM08-1B5PS-ZC1 Inductive Proximity Sensor is a compact M8 flush-mount detection device built for precision measurement in industrial automation. Designed with a nickel-plated brass housing and a 1.5 mm sensing distance, it ensures reliable operation even in confined areas. Operating on a 10–30 V DC power range with a PNP normally open output, it achieves a rapid 3 kHz switching frequency for accurate detection of metallic targets. Its IP67 enclosure provides excellent resistance against dust, oil, and moisture, making it suitable for demanding environments such as assembly, packaging, and robotic applications.
Engineered for high efficiency, the IM08-1B5PS-ZC1 combines robust materials and intelligent design to deliver stable, repeatable performance in continuous operation. Its fast response and low hysteresis enable reliable sensing of fast-moving metal parts without false triggers. The durable construction resists shock, vibration, and temperature variation, ensuring consistent results over time. Its compact form makes it ideal for tight installation spaces, while the three-wire DC configuration simplifies integration into control systems. This sensor helps enhance automation reliability, minimize downtime, and maintain production accuracy across various manufacturing processes.
Why SICK IM08-1B5PS-ZC1?
Choose the SICK IM08-1B5PS-ZC1 for its outstanding precision and speed in metal detection within tight spaces. Its compact M8 design, rugged nickel-plated brass body, and rapid 3 kHz switching make it a smart choice for automation systems where reliability and accuracy are critical. It’s built to perform flawlessly in demanding industrial conditions.
What Problem Does It Solve?
This sensor eliminates the challenge of inconsistent or slow detection in compact, vibration-prone environments. By offering stable performance, high repeatability, and resistance to dust or oil, the IM08-1B5PS-ZC1 ensures precise detection of small metallic parts—minimizing downtime and improving process reliability in automated production lines.
Key Features & Specifications – SICK IM08-1B5PS-ZC1: 6020223
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Inductive Proximity Sensor | Ideal for detecting metal objects without physical contact. |
| Housing Design | M8 × 1, cylindrical, flush mount | Compact size fits into tight automation assemblies. |
| Sensing Range (Sn) | 1.5 mm | High accuracy for close-range detection in confined spaces. |
| Output Type | PNP, Normally Open (NO) | Provides fast and stable switching in DC 3-wire systems. |
| Switching Frequency | Up to 3 kHz | Enables rapid and precise detection of fast-moving parts. |
| Operating Voltage | 10–30 V DC | Wide voltage tolerance for flexible integration into existing systems. |
| Enclosure Rating | IP67 | Fully protected from dust and water, ideal for harsh industrial environments. |
| Material | Nickel-plated brass housing, plastic sensing face | Strong resistance to wear, oil, and mechanical stress. |
| Shock/Vibration Resistance | 30 g / 10–55 Hz | Maintains consistent operation under mechanical stress. |
| Operating Temperature | –25 °C to +70 °C | Reliable performance across broad temperature conditions. |
| Electrical Protection | Short-circuit and power-up pulse protection | Prevents damage from electrical faults or start-up surges. |
| Connection Type | M12 male connector, 4-pin | Ensures quick and secure installation with standard connectors. |
| Response Time | ≤ 100 ms | Guarantees immediate signal output for high-speed systems. |
| MTTFD (Mean Time To Dangerous Failure) | 2,378 years (calculated) | Exceptional long-term reliability for continuous operation. |
| Compliance | EN 60947-5-2 | Meets international standards for safety and EMC compatibility. |
Download SICK IM08-1B5PS-ZC1 6020223 Datasheet
Commercial Information – SICK IM08-1B5PS-ZC1: 6020223
| Commercial Data | Details |
|---|---|
| Weight | 20 g |
| Country of Origin | Italy |
The Applications – SICK IM08-1B5PS-ZC1 Inductive Proximity Sensor
1. Cap Detection in Beverage Filling Machines
In high-speed bottling lines, ensuring every bottle is properly sealed is critical. The IM08-1B5PS-ZC1 detects metallic caps at extremely fast cycle rates, preventing unsealed bottles from reaching the packaging stage. Its 3 kHz response easily keeps pace with conveyor speeds, while IP67 protection ensures reliability even with splashing water or condensation. Compact enough for tight spaces near conveyors, it guarantees precise detection and uninterrupted production efficiency.
2. Robotic Arm Position and Grip Verification
In automated assembly cells, robots depend on exact feedback to confirm part pickup. Mounted inside a robotic gripper, the IM08-1B5PS-ZC1 identifies whether a metal piece has been successfully grasped before the next move. Its 1.5 mm sensing range and flush mounting design make it ideal for limited spaces. The durable brass housing resists shocks from tool changes, maintaining high accuracy and reducing the risk of incomplete or misaligned assemblies.
3. Index Table Position Confirmation
Rotary tables used for precision machining rely on accurate position sensing. The IM08-1B5PS-ZC1 reads metal tabs or flags as the table rotates, confirming correct alignment before machining or assembly begins. The sensor’s tight reproducibility and high vibration resistance ensure stable performance under continuous operation. This enhances cycle consistency, minimizes alignment errors, and prevents tool damage from incorrect positioning.
4. Screw Feeder and Component Counting Systems
In fastener feeders or small-parts conveyors, missing or doubled screws can cause assembly errors. The IM08-1B5PS-ZC1 detects each passing metal screw head with precision, maintaining a real-time count. Its fast switching response and short sensing range isolate the target, preventing false triggers from nearby hardware. Resistant to oil and dust, the sensor keeps counting accurate even in lubricated environments, improving throughput and preventing costly rework.
