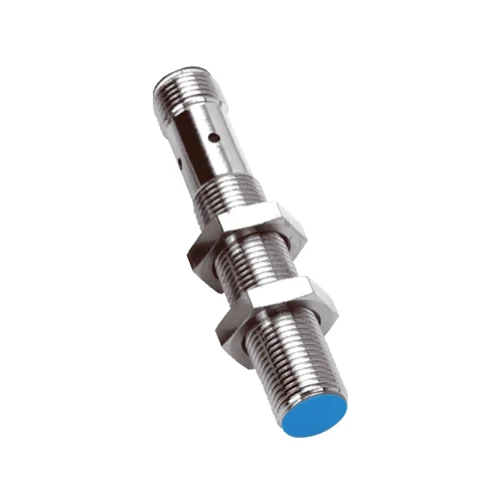

SICK IM12-02BPS-ZC1 Inductive Proximity Sensor – Compact M12 Flush Mount Detection
The SICK IM12-02BPS-ZC1 inductive proximity sensor is a compact M12 flush-mount sensor engineered for precise, non-contact detection of metal targets in industrial automation systems. It addresses the need for reliable object sensing in limited installation spaces while maintaining high durability in harsh environments. Featuring a 2 mm sensing distance, PNP normally open output, and fast response suitable for dynamic processes, this sensor supports consistent and repeatable detection. Its rugged metal housing and sealed design make it well suited for machinery where mechanical stress, dust, and moisture are present.
The SICK IM12-02BPS-ZC1 delivers stable detection performance in high-speed and continuous-duty applications such as automated assembly, material positioning, and conveyor monitoring. Flush installation allows the sensor to be mounted directly into metal surfaces without affecting sensing reliability, reducing mechanical vulnerability. The wide DC operating voltage range simplifies integration into diverse control systems, while built-in electrical protections enhance system safety and uptime. Designed to withstand vibration, shock, and temperature fluctuations, this sensor helps maintain process accuracy and reduces maintenance requirements in demanding industrial environments.
Why SICK IM12-02BPS-ZC1?
The SICK IM12-02BPS-ZC1 is chosen when reliability, compact size, and installation flexibility are critical. Its M12 flush-mount design fits cleanly into tight mechanical layouts while maintaining stable detection performance. Engineered for continuous industrial operation, it combines fast response, robust metal construction, and electrical protection features to deliver consistent results with minimal maintenance. This makes it a dependable sensing element for machines that demand accuracy without compromising durability or uptime.
What problem does it solve?
The SICK IM12-02BPS-ZC1 solves the challenge of detecting metal objects accurately in confined or harsh industrial environments where mechanical switches fail or wear out. It enables contactless sensing unaffected by dust, vibration, or surface wear, ensuring precise position feedback and process control. By eliminating physical contact and providing repeatable detection at high speeds, it reduces downtime, improves machine reliability, and supports stable automation performance.
Key Features & Specifications – SICK IM12-02BPS-ZC1: Part Number 6011971
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Inductive proximity sensor | Enables reliable, non-contact detection of metal objects |
| Housing Size | M12 cylindrical, Ø12 mm | Ideal for compact machines and tight installation spaces |
| Installation Type | Flush mount | Allows mounting directly into metal surfaces without false triggering |
| Sensing Range | 2 mm (nominal) | Ensures precise and repeatable short-range detection |
| Switching Output | PNP, Normally Open (NO) | Easy integration with standard PLC and control systems |
| Electrical Wiring | DC 3-wire | Simplifies wiring and reduces installation errors |
| Switching Frequency | Up to 2,000 Hz | Supports high-speed automation and fast-moving processes |
| Supply Voltage | 10–30 V DC | Compatible with a wide range of industrial power systems |
| Continuous Output Current | ≤ 200 mA | Reliable signal switching for industrial control loads |
| Response Availability Time | ≤ 100 ms | Fast start-up for immediate system readiness |
| Housing Material | Nickel-plated brass | High mechanical strength and resistance to industrial wear |
| Sensing Face Material | Plastic | Stable sensing performance with reduced target interference |
| Enclosure Rating | IP67 | Protected against dust and temporary water immersion |
| Shock & Vibration Resistance | 30 g shock, vibration-resistant | Maintains accuracy in high-vibration machinery |
| Operating Temperature | –25 °C to +70 °C | Suitable for demanding industrial environments |
| Protection Functions | Short-circuit and power-up pulse protection | Enhances system safety and reduces downtime |
| Service Life (MTTFD) | 192 years | Designed for long-term, maintenance-free operation |
| Connection Type | M12 male connector, 4-pin | Quick replacement and standardized cabling |
Download SICK IM12-02BPS-ZC1 (6011971) Datasheet
