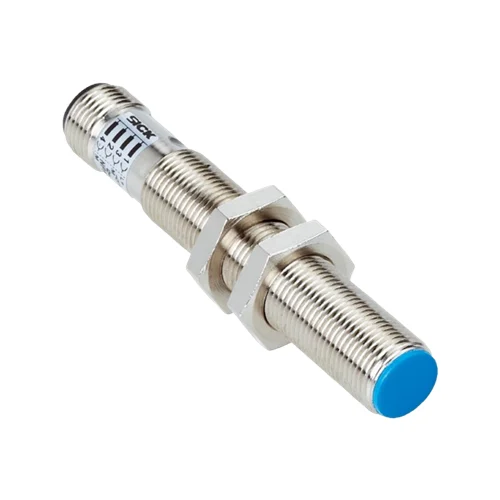

SICK IM12-02BPS-ZUK inductive proximity sensor with M12 housing, 2 mm sensing range, PNP output, and IP67 rating for reliable metal detection.
SICK IM12-02BPS-ZUK inductive proximity sensor is a compact, short-body M12 sensor designed for accurate, non-contact detection of metal objects in industrial automation. Featuring a 2 mm sensing distance and flush installation, it addresses the need for precise positioning and presence detection in tight mechanical spaces. The PNP normally open output and high switching speed support stable operation in fast-moving processes. With an IP67-rated housing and durable metal construction, this sensor is built to perform reliably in demanding industrial environments while maintaining consistent detection accuracy.
The SICK IM12-02BPS-ZUK enhances machine reliability by eliminating physical contact during detection, reducing wear and unexpected downtime. Its rapid response and high switching frequency make it suitable for counting parts, monitoring end positions, and verifying component presence on automated production lines. A wide DC operating voltage allows easy integration into various control systems, while integrated electrical protections help safeguard equipment during operation. The robust housing and stable sensing behavior support long service life, lowering maintenance effort and improving overall system efficiency.
SICK IM12-02BPS-ZUK is chosen when engineers need dependable metal detection in compact, high-duty industrial equipment. Its short M12 housing fits easily into tight assemblies, while fast switching and stable sensing ensure precise results even in rapid motion systems. Built for long service life, it combines electrical protection, rugged construction, and repeatable performance, making it a trusted sensing element for modern automation where reliability and space efficiency matter.
SICK IM12-02BPS-ZUK solves the challenge of detecting metal objects accurately without physical contact in environments where space, speed, and durability are critical. It replaces mechanical switches that wear out or fail under vibration, dust, or moisture. By delivering consistent proximity detection at high speeds, it helps prevent missed counts, positioning errors, and unplanned downtime in automated machines and production lines.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Inductive proximity sensor | Reliable non-contact detection of metal objects |
| Housing Design | Short-body, cylindrical | Ideal for tight and space-constrained installations |
| Thread Size | M12 × 1 | Standardized mounting for easy replacement and integration |
| Sensing Distance | 2 mm (flush mount) | Accurate and repeatable detection at close range |
| Installation Type | Flush (shielded) | Stable sensing without interference from surrounding metal |
| Switching Output | PNP, normally open (NO) | Direct compatibility with most PLC and control systems |
| Switching Frequency | Up to 2,000 Hz | Supports high-speed counting and fast automation cycles |
| Electrical Connection | 3-wire cable, 2 m length | Simple wiring and flexible installation |
| Supply Voltage | 10–30 V DC | Wide operating range for global industrial standards |
| Response Time | ≤ 2 ms | Fast reaction for precise positioning and detection |
| Output Current | Up to 300 mA | Drives inputs reliably without additional relays |
| Protection Functions | Short-circuit, wire-break, power-up protection | Improves system safety and reduces risk of failure |
| Enclosure Rating | IP67 | Resistant to dust, moisture, and washdown environments |
| Housing Material | Nickel-plated brass | High mechanical strength and long service life |
| Operating Temperature | –25 °C to +75 °C | Stable operation in harsh industrial conditions |
| Indicators | Integrated status LED | Quick visual confirmation during setup and diagnostics |
| Certifications | CE, UKCA, RoHS compliant | Suitable for international industrial deployment |
Download SICK IM12-02BPS-ZUK (1017426) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084263934 |
| Weight | 64.2 g |
| Country of Origin | Hungary |
In automated production lines, metal parts often move at high speed, making reliable counting a technical challenge. The SICK IM12-02BPS-ZUK is well suited for this task due to its fast switching capability and stable sensing behavior. Installed beside conveyors or rotary indexing tables, it detects each passing metal component without physical contact. The flush-mounted M12 housing allows close installation near guides without interference. By eliminating mechanical wear and reducing false counts, the sensor helps manufacturers maintain accurate production data, reduce scrap, and keep output consistent even during continuous high-speed operation.
Compact pneumatic and electric actuators require precise end-position confirmation to ensure controlled motion and safe operation. The short-body design of the SICK IM12-02BPS-ZUK allows it to fit directly into tight actuator frames where space is limited. It detects metal pistons or stops quickly and repeatably, providing reliable feedback to the control system. Its sealed construction protects against dust, vibration, and oil mist commonly found in actuator environments. This improves positioning accuracy, reduces unexpected stops, and supports long-term system stability in automated machinery.
Machining centers depend on correct tool positioning to prevent collisions and costly damage. The SICK IM12-02BPS-ZUK can be used to verify the presence of metal tool holders or fixtures before machining begins. Its consistent sensing performance ensures reliable detection despite vibration and electrical noise from motors and drives. Integrated electrical protection further enhances operational safety. By confirming tool presence automatically, the sensor reduces operator dependency, improves machine safety, and helps maintain consistent machining quality across repeated production cycles.
In automated material handling systems, accurate pallet and fixture positioning is essential for smooth process flow. The SICK IM12-02BPS-ZUK detects metal pallets as they arrive at transfer points, lifts, or robotic stations. Flush mounting prevents false signals from nearby structures, while the PNP output enables straightforward PLC integration. Its rugged metal housing withstands impacts and harsh operating conditions. Reliable position feedback helps synchronize system movements, minimize jams, and improve overall efficiency in warehouses and automated production environments.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Clamping Block (with fixed stop) | BEF-KHF-M12 | 2051480 | Ensures fixed, repeatable sensor positioning, improving accuracy in vibration-prone installations |
| Clamping Block (without fixed stop) | BEF-KH-M12 | 2051479 | Allows flexible sensor adjustment during setup and alignment |
| Mounting Plate | BEF-WG-M12 | 5321869 | Offers a stable mounting surface for panel or frame installations |
| Mounting Bracket | BEF-WN-M12 | 5308447 | Supports angled or offset mounting to optimize sensing position in confined spaces |
